Ideal Graph Visualizer

Ideal Graph Visualizer (IGV) is a developer tool to analyze compilation graphs and investigate performance issues. IGV is developed to view and inspect intermediate representation graphs—a language-independent intermediate representation (IR) between the source language and the machine code, generated by the compiler. It is essential for any language implementers building on top of GraalVM.

The IGV tool is developed to allow GraalVM language implementers to optimize their languages assembled with the Truffle framework. As a development tool it should not be installed to production environments.

Prerequisites #

GraalVM installed.
The mx tool for the development of GraalVM projects (see below).

Get Started #

IGV is free to use and has to be built on user’s machine with the mx tool - a command-line tool to build, test, run, update the code, and built artifacts for GraalVM.

Clone the mx repository to your work directory:

 git clone https://github.com/graalvm/mx.git

Clone the Graal repository:

 git clone https://github.com/oracle/graal.git

Add mx to the PATH environment variable:
```
 export PATH="/path/to/mx:$PATH"
```
To check whether the installation was successful, run the command:
```
 mx --version
```
Launch IGV with mx:
```
 mx -p graal/compiler igv
```

Dump Graphs Using a Ruby Example #

Using a host Ruby application that embeds some Java, you will now dump compiler graphs over the network.

Save the following code snippet in a file named Test.rb:

 require 'json'
 obj = {
   time: Time.now,
   msg: 'Hello World',
   payload: (1..10).to_a
 }
 encoded = JSON.dump(obj)
 js_obj = Polyglot.eval('js', 'JSON.parse').call(encoded)
 puts js_obj[:time]
 puts js_obj[:msg]
 puts js_obj[:payload].join(' ')

Install Ruby from a TruffleRuby standalone using a Ruby manager/installer. Check its version to make sure you are running the TruffleRuby distribution:
```
 ruby --version
```

Run the application, connecting the process to the running IGV:

 ruby --vm.Djdk.graal.Dump=:1 --vm.Djdk.graal.PrintGraph=Network Test.rb

This dumps compiler graphs, in the IGV format, over the network to an IGV process listening on 127.0.0.1:4445. Once the connection is made, you are able to see the graphs in the Outline view. Find, for example, the java.lang.String.char(int) folder and open its After Parsing graph by double-clicking. If the node has sourceNodePosition property, then the Processing window will attempt to display its location and the entire stacktrace.

Browse Graphs #

Once a specific graph is opened, you can search for nodes by name, ID, or by property=value data, and all matching results will be shown. Another great feature of this tool is the ability to navigate to the original guest language source code. Select a node in the graph and click the Go to Source button in the Stack View window.

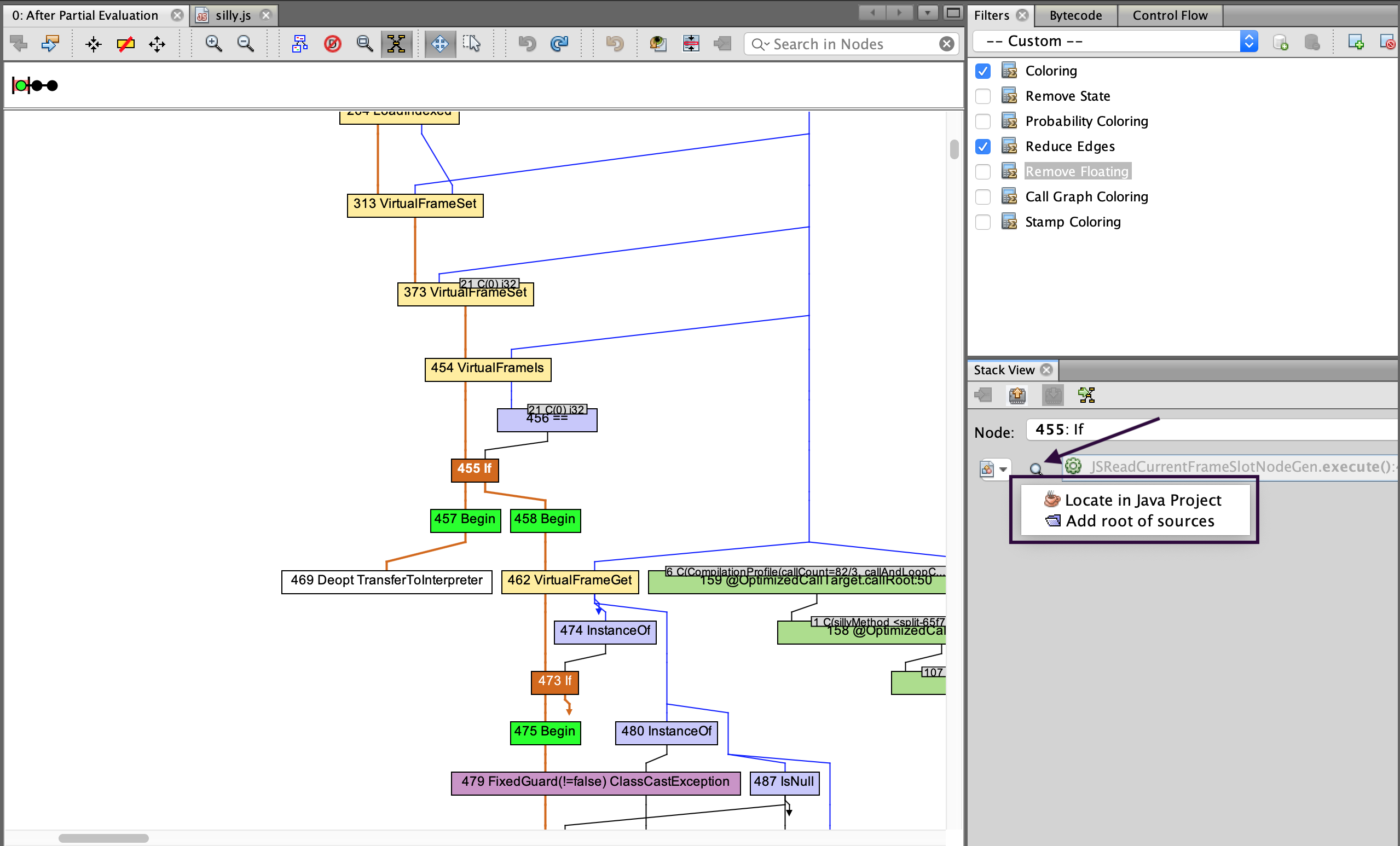

IGV add source

Graphs navigation is also available from the Context menu, enabled by focusing and right-clicking a specific graph node. The Extract Nodes option re-renders a graph and displays only the selected nodes and their neighbors.

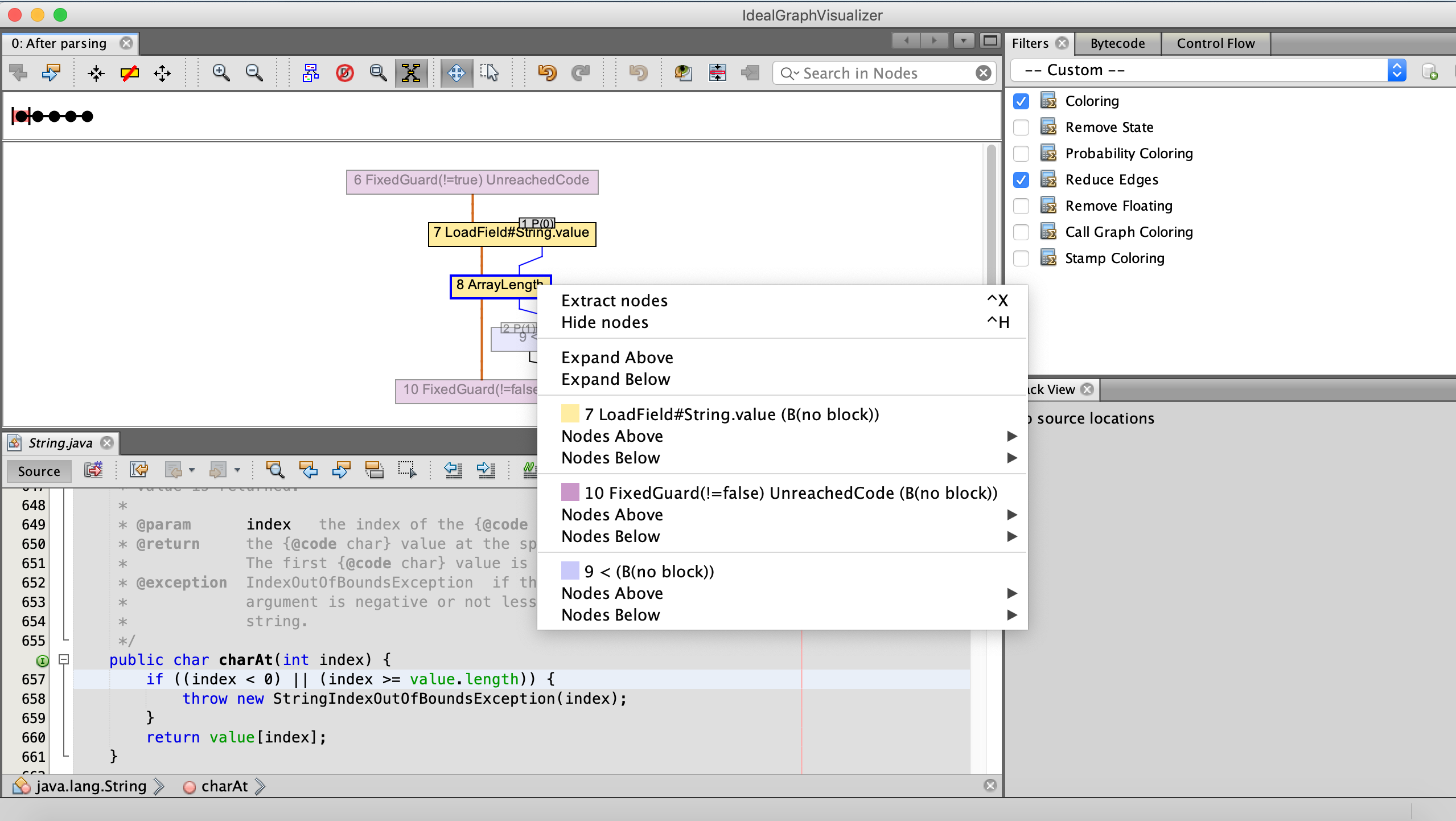

IGV context menu

If the graph is larger than the screen, manipulate with the Satellite view button in the main toolbar to move the viewport rectangle.

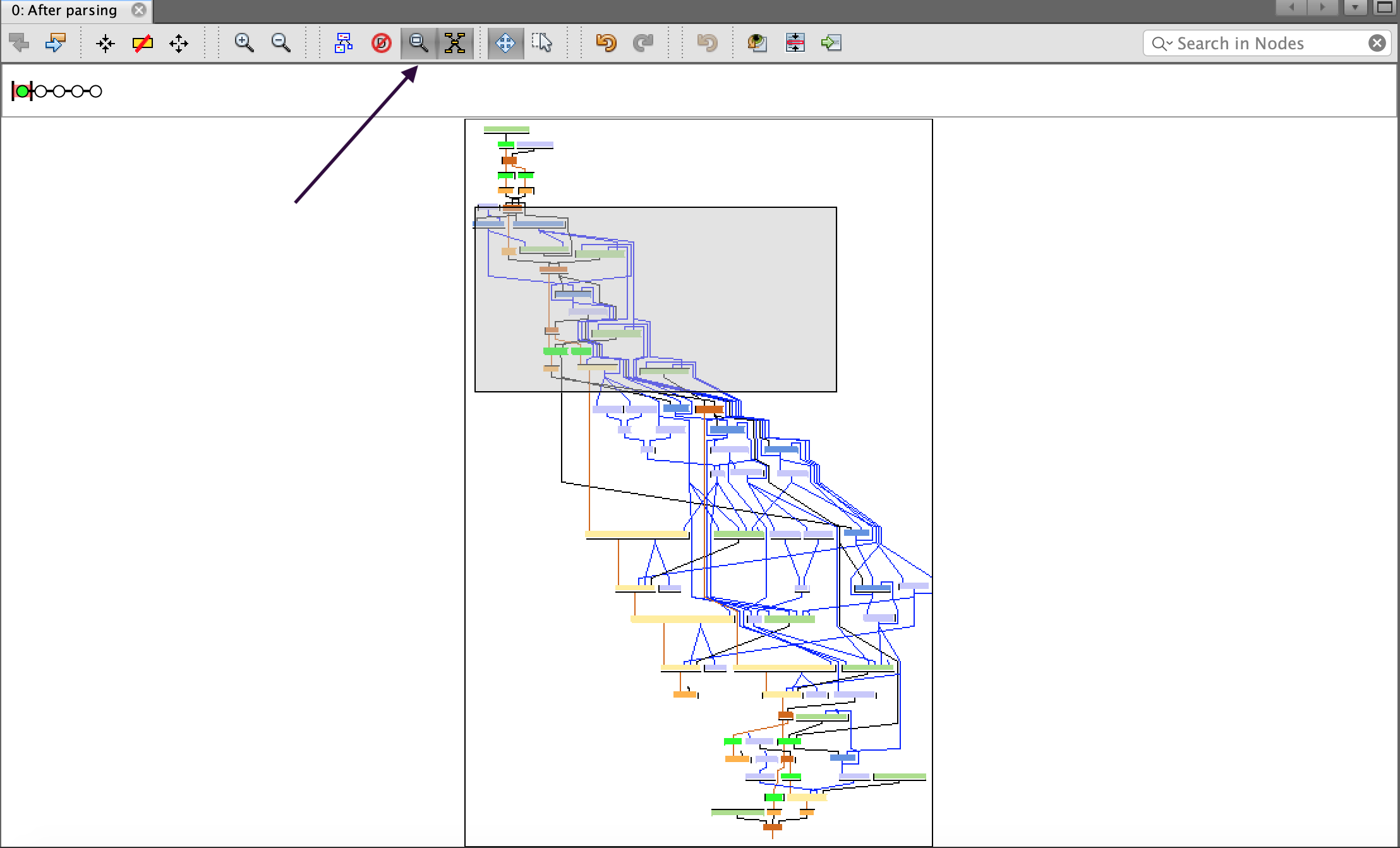

IGV satellite view button

For user preference, the graph color scheme is adjustable by editing the Coloring filter, enabled by default in the left sidebar.

View Source Code #

Source code views can be opened in manual and assisted modes. Once you select a node in the graph view, the Processing view opens. If the IGV knows where the source code for the current frame is, the green Go to Source arrow is enabled. If the IGV does not know where the source is, the line is greyed out and a Looking Glass button appears.

View Source Code

Press it and select Locate in Java project to locate the correct project in the dialog. The IGV hides projects which do not contain the required source file. The Source Collections serves to display the standalone roots added by Add root of sources general action. If the source is located using the preferred method (for example, from a Java project), its project can be later managed on the Project tab. That one is initially hidden, but you can display the list of opened projects using Window, then Projects.

Dump Graphs from Embedded Java #

To dump the GraalVM compiler graphs from an embedded Java application to IGV, you need to add options to the GraalVM-based process. Depending on the language/VM used, you may need to prefix the options by --vm. See the particular language’s documentation for the details. The main option to add is -Djdk.graal.Dump=:1. This will dump graphs in an IGV readable format to the local file system. To send the dumps directly to the IGV over the network, add -Djdk.graal.PrintGraph=Network when starting a GraalVM instance. Optionally a port can be specified. Then dumps are sent to the IGV from the running GraalVM on localhost. If the IGV does not listen on localhost, check under Options, then Ideal Graph Settings|Accept Data From Network can be checked. If there is not an IGV instance listening on 127.0.0.1, or it cannot be connected to, the dumps will be redirected to the local file system. The file system location is graal_dumps/ under the current working directory of the process and can be changed with the -Djdk.graal.DumpPath option.

In case an older GraalVM version is used, you may need to explicitly request that dumps include the nodeSourcePosition property. This is done by adding the -XX:+UnlockDiagnosticVMOptions -XX:+DebugNonSafepoints options.
